High Light
High Speed 4G WIFI LTE Router
,4G WIFI LTE Router Support VoLTE
,CAT4 4G LTE smart router
-
Network3G/4G
-
AntennaExternal(Internal Optional)
-
Wi-Fi Supported Frequency2.4G
-
WIFIIEEE 802.11 B/g/n
-
FunctionFireWall, QoS, VPN, VOLTE
-
SpeedLTE CAT4 150Mbps
-
Place of OriginSHENZHEN,CHINA
-
Brand NameBROADSIS
-
Model NumberLS9600
-
Minimum Order Quantity1 units
-
PriceNegotiable
-
Packaging DetailsCarton
-
Delivery Time20 work days
-
Payment TermsT/T
-
Supply Ability3000 units/day
High Speed 4G WIFI LTE Router SMS FireWall QoS Volte Call VPN
LTE High Speed Wireless Router SMS Volte Call VPN
Product Description

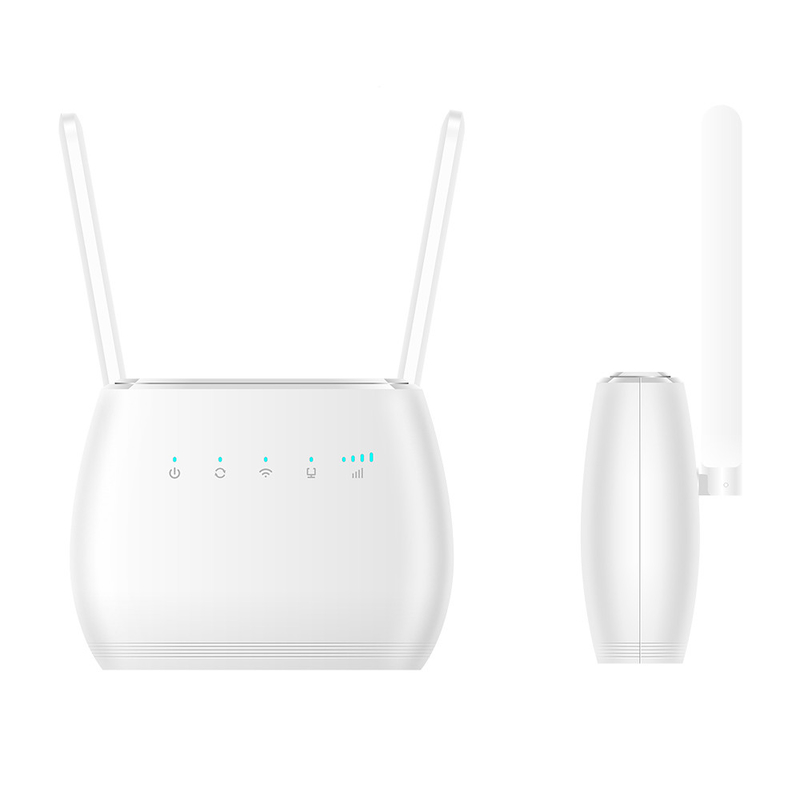

4G WIFI Router LS-9600 is supports both 4G CAT4 and IEEE 802.11 b/g/n protocols, Support Volte calls and send
and receive SMS.Support IPV4/IVP6 Protocol and VPN.
Key feature:
- Support 3G/4G network connection
- Support VoLTE
- Support external or internal antenna
- IP broadband band control, ensure the speed
- Support network traffic statistics
- Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
| Product Specifications | |||
| Communication System (WAN) |
Chipset | Qualcomm MDM9x07 | |
| Frequency Bands |
LTE | LTE FDD: option1:B1/B2/B3/B4/B5/B7/B8/B28 option2:B1/B3/B5/B7/B8/B20 |
|
| LTE TDD: B38/B40/B41 |
|||
| UMTS | WCDMA: option1:B1/B2/B5/B8 option2:B1/B5/B8 |
||
| GSM | GSM: B2/B3/B5/B8 | ||
| Bandwidth | LTE Band | 1.4/3/5/10/15/20 MHz, comply with 3GPP | |
| Modulation | Downlink | QPSK/16-QAM/64-QAM, comply with 3GPP | |
| Uplink | QPSK/16-QAM, comply with 3GPP | ||
| Antenna | Internal | Primary and Diversity (UMTS Optional) | |
| External | Optional: Primary and Diversity | ||
| RF Power Level |
LTE FDD | Power Class 3 (23 +/-2dBm) | |
| UMTS | Power Class 3 (24 +1.7/-3.7dBm) | ||
| EDGE | Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm) | ||
| GPRS | GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm) | ||
| Data Rate | 4G | 3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |
| 3G | 3GPP Downlink/Uplink up to 42Mbps/5.76Mbps | ||
| 2G | EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps | ||
| WLAN | Wi-Fi | Chipset | RT8192S |
| Frequency | 2.4GHz | ||
| Protocol | 802.11b/g/n, 20/40M | ||
| Channel | 1~13 | ||
| Antenna | Internal onboard, 2 x 2 | ||
| Data Rate | 802.11b | Up to 11 Mbps | |
| 802.11g | Up to 54 Mbps | ||
| 802.11n | Up to 300 Mbps | ||
| Feature | Interface | LAN/WAN | 2xRJ45 for 2xLANs or 1xWAN+1xLAN, Giga Ports |
| RJ11 | CS Voice, VoLTE | ||
| USIM | Single, 2FF | ||
| Antenna | External antenna interface supported, internal/external auto-detecting | ||
| Power Jack | 12v1A interface | ||
| micro USB | for debug & firmware update | ||
| LED | POWER | Power Status Indicator (1 LED, Green) | |
| 2.4GHz | 2.4G Wi-Fi Status Indicator, (1 LED, Green) | ||
| LAN | LAN Indicator, (1 LED, Green) | ||
| INTERNET | 2G/3G/4G Network Status Indicator, (1 LED, RGB) | ||
| Signal Strength | 2G/3G/4G Network Signal Strength Indicator, 5 level, (4 LED, Green) | ||
| keystoke | WPS Key | Enable /Disable WPS | |
| Reset Key | Restore Factory Settings | ||
| WebUI | System | Connection Status | |
| Statistics | |||
| Device Management | |||
| Power Mangement | |||
| Parent management | |||
| firmware fota | |||
| language:CH/EN/Português/Español | |||
| Mobile Service |
SMS Manager | ||
| Automatic APN matching according to USIM | |||
| Auto Data Connection | |||
| USSD Service | |||
| PIN/PUK Management | |||
| Network Mode Selection(2G/3G/LTE/Auto) | |||
| Router | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions | ||
| IPv4/v6 | |||
| VPN Passthrough, VPN Client (Optional) | |||
| Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) | |||
| Virtual Server, UPnP, DMZ, DDNS | |||
| DoS, SPI Firewall, IP/MAC Address Filter | |||
| IP and MAC Address Binding | |||
| Traffic Control (IP QoS) | |||
| Access Control, Local Management, Remote Management(TR069) | |||
| Operation System | Windows | 7/8/10 | |
| MAC OS | 10.10+ | ||
| Linux | Ubuntu 15.04+ | ||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||
| Environment | Power Supply | 12V,1A | |
| Working Temperature | 0°C to 45°C (32°F-113°F) | ||
| Storage Temperature | -20°C to 60°C (-4°F-140°F) | ||
