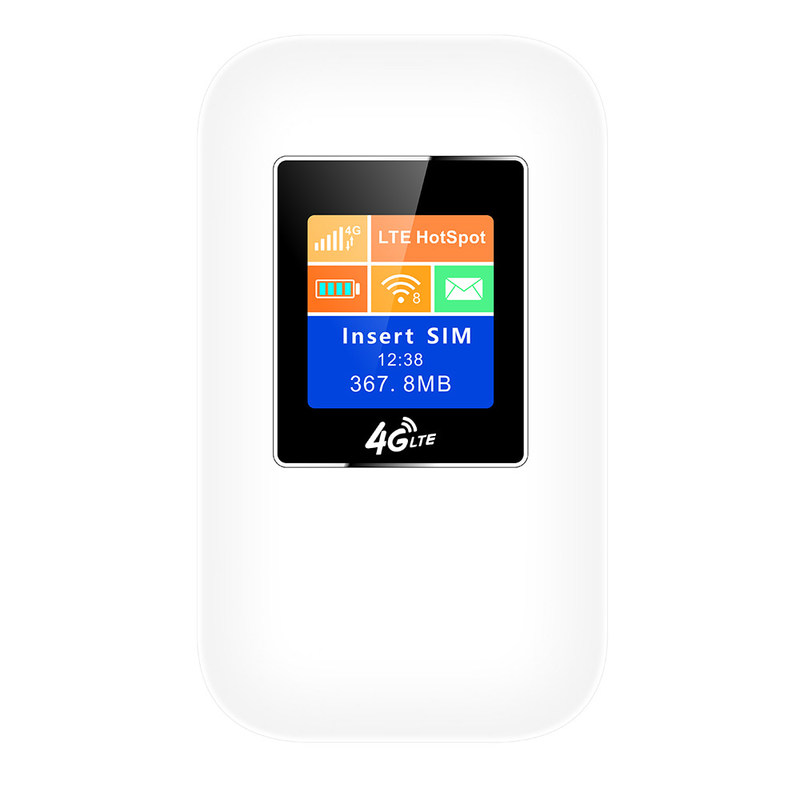

LCD Screen 4G LTE Wireless WIFI Router MIFI With T Flash Card

LCD Screen 4G LTE Wireless WIFI Router MIFI With T Flash Card

  • High Light

    CAT4 Wireless WIFI Router

    ,

    2100mAh Wireless WIFI Router

    ,

    WCDMA 4G WIFI LTE Router

  • Chipset
    ZX297520V3T
  • Network
    LTE CAT4
  • Wi-Fi
    802.11b/g/n, 20MHz/40MHz
  • Battery
    2100mAh
  • LCD
    Color Screen
  • T Flash
    Support
  • Place of Origin
    SHENZHEN,CHINA
  • Brand Name
    Broadsis
  • Model Number
    LS93
  • Minimum Order Quantity
    1 units
  • Price
    Negotiable
  • Packaging Details
    290×270×140mm(20 pcs/box)G.W.:4KG
  • Delivery Time
    20 work days
  • Payment Terms
    T/T
  • Supply Ability
    4000 units/day

LCD Screen 4G LTE Wireless WIFI Router MIFI With T Flash Card

4G LTE Wireless WIFI Router MIFI With T Flash Card LCD Screen





Product Description of 4G LTE Wireless WIFI Router





   4G LTE Wireless WIFI Router LS93 is mainly designed for SOHO, vehicle users, business travellers and outdoor travellers, supporting up 8 users at the same time, low power consumption and long battery life; stylish, compact and portable make you to enjoy high-speed Internet anytime and anywhere.



Key features of 4G LTE Wireless WIFI Router

  • Color screen
  • LTE/WCDMA
  • 2100mAh battery
  • Connect up to 8 devices
  • Easier management
  • Internal antenna



4G LTE Wireless WIFI Router LS93

Communication
System (LTE WAN)
Chipset ZX297520V3T+128Nor Flash+230
Frequency
Bands
FDD LTE B1/B3/B5/B8
E: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B40/B41; WCDMA B1/B5/B8;
A: FDD-LTE B2/B4/B5/B7/B28/B66 ; WCDMA B2/B5;
B: FDD-LTE B1/B3/B5/B7/B8/B28; TDD-LTE B38/B40/B41; WCDMA B1/B5/B8;
TDD LTE B34/B38/B39/B40/B41
UMTS B1/B8
GSM /
Bandwidth LTE Band 1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation Downlink QPSK/16-QAM/64-QAM, comply with 3GPP
Uplink QPSK/16-QAM, comply with 3GPP
LTE Antenna Internal/External Primary and Diversity 2*2 MIMO
RF Power
Level
LTE-FDD Power Class 3 (23 dBm + 2.7/-3.7dB)
UMTS Power Class 3 (24 dBm +1.7/-3.7dB)
Data Rate 4G 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
3G 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps
2G /
WLAN Wi-Fi Chipset SV6158
Frequency 2.4GHz
Protocol 802.11b/g/n, 20MHz/40MHz
Channel Auto or select channel from channel1 to channel13
Antenna 1x1, Internal
Connection Availability up to support 8 access points
Data Rate 802.11b Up to 11 Mbps
802.11g Up to 54 Mbps
802.11n Up to 150 Mbps
Features Interfaces ESIM EUICC*3
USIM Micro-SIM (3FF)*1
USB Type Mirco USB*1
T Flash card support
Battery 2100mAh
LED Wi-Fi/WPS Wi-Fi Status Indicator
SMS Show sms status
Network Show network status
Battery Battery status indicator (charger status, low power, battery status)
Buttons Power Key Power Switch,*1
WPS/WIFI key Enable /Disable WPS or WiFi
Reset Key (Hole) Restore Factory Settings *1
WebUI System Connect Status
Statistics
Network settings
Connected devices
Language Chinese/English/Español/Português customizable
Mobile
Service
SMS Management
Automatic APN matching according to USIM/APN management
Security Management
Auto Data Connection
PIN/PUK Management
Network Mode Selection (3G/4G/Auto)
Traffic Statistics
Router SSID management
OPEN, WPA(AES)-PSK/WPA2, WPA-PSK/WPA2-PSK encryptions
Router Management
WIFI Management (Power Saving Mode)
APN Management
IPv4/v6
DHCP Server, Dynamic IP
UPnP, DMZ
Firewall
PORT Filter/Port Mapping/ Port Forwarding
Access Control, Local Management
Operation System Windows 7/8/XP/10
MAC OS 10/10+
Andriod 10/11
Linux Ubuntu 15.04+
Browser IE9+, Firefox, Google Chrome, Safari, Opera
FW Upgrade USB Yes
FOTA Yes
Environment Power Supply Battery The current design only support battery power supply, the battery is 2100mAh
Working Temperature -20°C to 45°C
Storage Temperature -20°C to 60°C
Certification Certifications to be applied upon customer requirements
Material RoHS
Package MiFi Device 1 PCS
USB cable 1 PCS
Quick start user guide 1 PCS
warranty card 1 PCS





Quality of 4G LTE Wireless WIFI Router

1. 100% new materials for production, the chips are purchased from international firms such as MTK,UNISOC,Qualcomm etc.

2. High quality products with ISO9001, RoHS, FCC, CE,GCF Certificates.

3. Multiple detection: Raw materials detection, High and low temperature test, 24 hours aging test, QA test before delivery.
