High Light
20MHz 4G WIFI LTE Router
,40MHz 4G WIFI LTE Router
,CAT4 4G MIFI Router
-
LTE AntennaInternal
-
NetworkLTE CAT4
-
Wi-Fi802.11b/g/n, 20MHz/40MHz
-
LanguageChina/English/Español/Português
-
LCDColor Screen
-
USB TypeMirco USB*1
-
Place of OriginSHENZHEN,CHINA
-
Brand NameBroadsis
-
Model NumberLS93
-
Minimum Order Quantity1 units
-
PriceNegotiable
-
Packaging Details290×270×140mm（20 pcs/box）G.W.：4KG
-
Delivery Time20 work days
-
Payment TermsT/T
-
Supply Ability4000 units/day

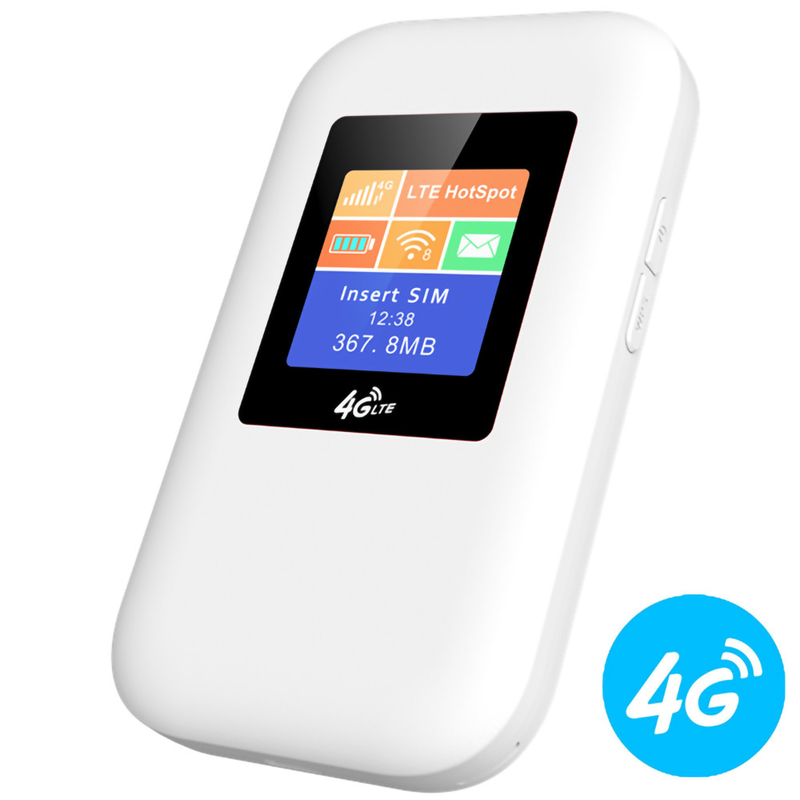

Mini Color Screen MIFI 3G Sim 4G WIFI LTE Router Global Band
Mini Color Screen MIFI 4G 3G Sim WIFI Support Global Band Router
Product Description of Mini Color Screen MIFI
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea,Saudi Arabia, Spain, Brazil, Austria,Ukraine, United Kingdom,France, Germany,Italy, Norway, New Zealand, Czech Republic,Australia,Netherlands,, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.
Key features of Mini Color Screen MIFI
- Smart colorful screen
- Extra high Speed
- 2100mAh battery
- Connect up to 8 devices
- Easier management
- Secure network
Mini Color Screen MIFI LS93
| Communication System (LTE WAN) |
Chipset | ZX297520V3T+128Nor Flash+230 | |||||
| Frequency Bands |
FDD LTE | B1/B3/B5/B8 | E: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B40/B41; WCDMA B1/B5/B8; A: FDD-LTE B2/B4/B5/B7/B28/B66 ; WCDMA B2/B5; B: FDD-LTE B1/B3/B5/B7/B8/B28; TDD-LTE B38/B40/B41; WCDMA B1/B5/B8; |
||||
| TDD LTE | B34/B38/B39/B40/B41 | ||||||
| UMTS | B1/B8 | ||||||
| GSM | / | ||||||
| Bandwidth | LTE Band | 1.4/3/5/10/15/20 MHz, comply with 3GPP | |||||
| Modulation | Downlink | QPSK/16-QAM/64-QAM, comply with 3GPP | |||||
| Uplink | QPSK/16-QAM, comply with 3GPP | ||||||
| LTE Antenna | Internal/External | Primary and Diversity 2*2 MIMO | |||||
| RF Power Level |
LTE-FDD | Power Class 3 (23 dBm + 2.7/-3.7dB) | |||||
| UMTS | Power Class 3 (24 dBm +1.7/-3.7dB) | ||||||
| Data Rate | 4G | 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |||||
| 3G | 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps | ||||||
| 2G | / | ||||||
| WLAN | Wi-Fi | Chipset | SV6158 | ||||
| Frequency | 2.4GHz | ||||||
| Protocol | 802.11b/g/n, 20MHz/40MHz | ||||||
| Channel | Auto or select channel from channel1 to channel13 | ||||||
| Antenna | 1x1, Internal | ||||||
| Connection Availability | up to support 8 access points | ||||||
| Data Rate | 802.11b | Up to 11 Mbps | |||||
| 802.11g | Up to 54 Mbps | ||||||
| 802.11n | Up to 150 Mbps | ||||||
| Features | Interfaces | ESIM | EUICC*3 | ||||
| USIM | Micro-SIM (3FF)*1 | ||||||
| USB Type | Mirco USB*1 | ||||||
| T Flash card | support | ||||||
| Battery | 2100mAh | ||||||
| LED | Wi-Fi/WPS | Wi-Fi Status Indicator | |||||
| SMS | Show sms status | ||||||
| Network | Show network status | ||||||
| Battery | Battery status indicator (charger status, low power, battery status) | ||||||
| Buttons | Power Key | Power Switch,*1 | |||||
| WPS/WIFI key | Enable /Disable WPS or WiFi | ||||||
| Reset Key (Hole) | Restore Factory Settings *1 | ||||||
| WebUI | System | Connect Status | |||||
| Statistics | |||||||
| Network settings | |||||||
| Connected devices | |||||||
| Language | Chinese/English/Español/Português | customizable | |||||
| Mobile Service |
SMS Management | ||||||
| Automatic APN matching according to USIM/APN management | |||||||
| Security Management | |||||||
| Auto Data Connection | |||||||
| PIN/PUK Management | |||||||
| Network Mode Selection (3G/4G/Auto) | |||||||
| Traffic Statistics | |||||||
| Router | SSID management | ||||||
| OPEN, WPA(AES)-PSK/WPA2, WPA-PSK/WPA2-PSK encryptions | |||||||
| Router Management | |||||||
| WIFI Management (Power Saving Mode) | |||||||
| APN Management | |||||||
| IPv4/v6 | |||||||
| DHCP Server, Dynamic IP | |||||||
| UPnP, DMZ | |||||||
| Firewall | |||||||
| PORT Filter/Port Mapping/ Port Forwarding | |||||||
| Access Control, Local Management | |||||||
| Operation System | Windows | 7/8/XP/10 | |||||
| MAC OS | 10/10+ | ||||||
| Andriod | 10/11 | ||||||
| Linux | Ubuntu 15.04+ | ||||||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||||||
| FW Upgrade | USB | Yes | |||||
| FOTA | Yes | ||||||
| Environment | Power Supply | Battery | The current design only support battery power supply, the battery is 2100mAh | ||||
| Working Temperature | -20°C to 45°C | ||||||
| Storage Temperature | -20°C to 60°C | ||||||
| Certification | Certifications | to be applied upon customer requirements | |||||
| Material | RoHS | ||||||
| Package | MiFi Device | 1 PCS | |||||
| USB cable | 1 PCS | ||||||
| Quick start user guide | 1 PCS | ||||||
| warranty card | 1 PCS |
|
|||||
Advantage Of Mini Color Screen MIFI
1. Excellent quality and 1 years warranty
2. Competitive pricing
3. Certification (FCC, CE, Rohs, GCF)
4. OEM/ODM Customized
5. Big stock, Fast delivery(1-3 work days)
6. Excellent Low Power Consumption
Our products are sold all over the world, you can rest assured.
